2002 — 2007

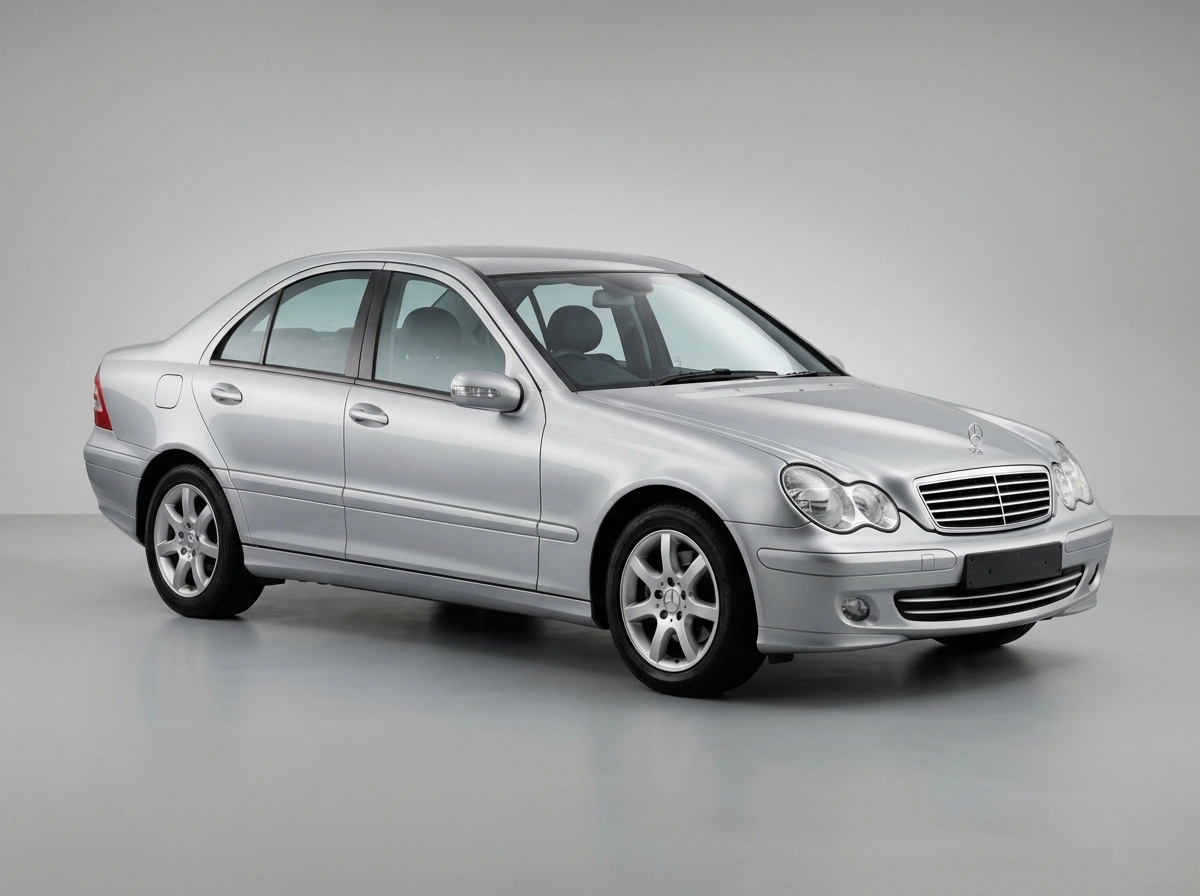

1.8L I4 Kompressor (M271) - Classic/Elegance/Avantgarde
Petrol
Inspect main ECU connectors and front cam magnets for oil leakage | Description: Unclip the electrical connectors at the camshaft magnets on the front of the cylinder head. If oil is present, it will wick through the wiring loom via capillary action directly into the engine ECU, causing irreversible and catastrophic module failure.
Operate the complete HVAC climate control system across all zones | Description: Cycle through every ventilation mode and temperature setting. The plastic stepper motor gear linkages inside the W203 dashboard are notoriously fragile and snap with age, resulting in trapped air flaps and a persistent clicking sound behind the fascia.
Listen for brief engine rattling noises upon a strict cold start | Description: Listen intently for a sharp metallic rattling or chain-slap sound lasting 2-5 seconds when the engine fires from cold. This is the definitive warning sign of a stretched timing chain or failing hydraulic chain tensioner on the M271 engine.
Assess floorboard carpet dampness and plenum chamber drains | Description: Check the passenger and driver footwells for hidden moisture. Clogged front wiper plenum drains or perished sunroof channels cause rain water to backup and flood the cabin floor, instantly frying the sensitive front or rear SAM modules layout.
Critical diagnostic window to check timing chain elongation. Replace the camshaft magnets, install sacrificial oil-blocker pigtail harnesses, and replace the water pump and cooling thermostat assembly.
Execute a full transmission fluid and filter service on the 5-speed automatic gearbox. Thoroughly overhaul the front suspension lower control arms, anti-roll bar links, and inspect the supercharger (Kompressor) drive pulley bearing for internal play.
Long-term durability point. Perform a preventative supercharger internal oil service, inspect the crankcase partial-load breather rubber hoses hidden beneath the intake manifold for vacuum leaks, and rebuild the starter motor.
Shorten engine oil change intervals to 7,500km using premium synthetic oil to maintain optimal oil pressure for the timing chain tensioner.
Proactively install electrical 'pigtail' extension cables at the cam magnets to permanently shield the main wiring loom from oil leaks.
Flush transmission fluid every 60,000km to safeguard shift adaptions, ignoring early factory 'sealed for life' marketing claims.
Clear out front wiper plenum chamber rubber drains semi-annually to avoid leaf buildup and catastrophic electrical module flooding.
Monitor coolant expansion tank seams for hairline pressure cracks and replace immediately to prevent sudden overheating on NZ highways.
Estimated repair costs if issues arise
Vital preventative maintenance if any startup noise is present. Postponing this repair leads to skipped timing teeth, causing pistons to strike valves and total head destruction.
Frequent consequence of water ingress or voltage spikes from a dying battery; requires complex diagnostics and specialized chassis coding via Xentry software.
Necessary to cure front-end clunking over speed bumps and eliminate uneven tyre tread wear caused by NZ's demanding and coarse road typography.
