2005 — 2007

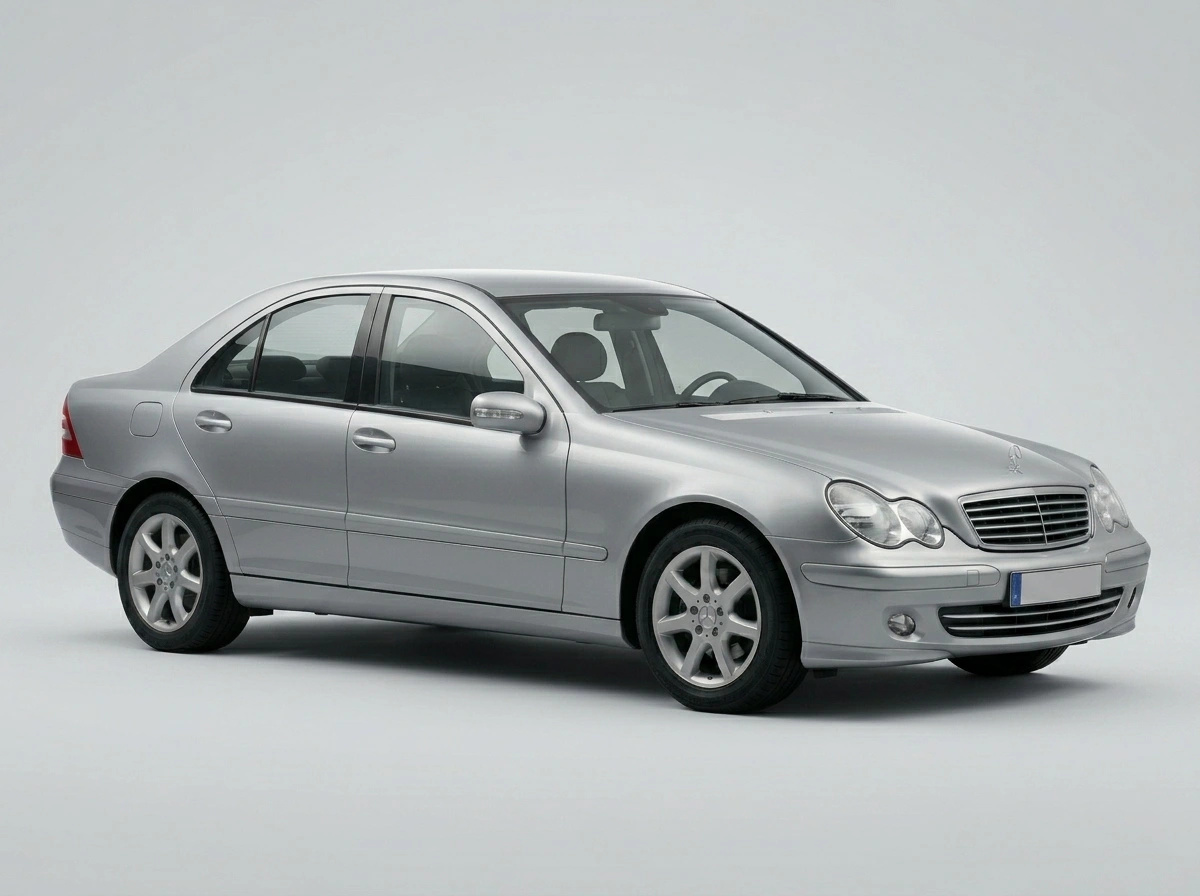

3.5L V6 (M272) - C350 Elegance/Avantgarde
Petrol
Check engine cold start for metallic rattle | Note: Listen closely to the front timing covers during a completely cold startup. Early production runs of the 3.5L M272 engine are notorious for premature balance shaft gear wear, which elongates the chain and causes catastrophic timing errors.
Verify 7G-Tronic transmission shift adaptation | Note: Test the 7-speed automatic gearbox during low-speed stop-and-go driving. Any prominent hesitation, shunting, or shift 'flaring' between 1st, 2nd, and 3rd gears indicates a failing internal electronic conductor plate or valve body wear.
Operate HVAC controls and listen to the dash | Note: Cycle the climate control settings through all ventilation modes. A distinct clicking or snapping noise behind the center console signals broken plastic stepper motor blend door actuators, a legendary W203 labor trap.
Inspect camshaft magnets and harness wiring | Note: Check the front of the engine block near the camshaft sensors for oil seepage. Hardened seals allow oil to leak and wick up through the engine wiring harness via capillary action, potentially ruining the main engine ECU.
The critical threshold where the original fluid-filled engine mounts and transmission mounts collapse, severely inducing V6 vibrations into the cabin. Front control arm bushings and sway bar links will also require replacement for WOF clearance on rough NZ roads.
Major service window requiring a complete transmission fluid pan and filter flush, replacement of direct ignition spark plugs, and a preventative refresh of the plastic thermostat housing and auxiliary drive belt idler pulleys.
A comprehensive evaluation of timing chain stretch and intake manifold tumble flap plastic linkages is highly recommended if they haven't been previously addressed, alongside a complete cooling system radiator refresh.
Strictly change engine oil every 10,000km or annually using premium synthetic oils matching the MB 229.5 approval rating.
Flush and service the 7G-Tronic 7-speed transmission fluid and filter rigidly every 60,000km to safeguard the solenoids.
Regularly clear leaves and organic debris from the windshield scuttle drainage holes to prevent cabin water ingress from frying floor SAM modules.
Inspect the intake manifold variable tumble flap external plastic linkages during every major service for cracks or binding.
Perform a comprehensive brake fluid flush every 24 months to maintain hydraulic pedal pressure and clear out internal moisture accumulation.
Estimated repair costs if issues arise
Critical structural hazard for pre-2008 M272 units. Rectifying a worn balance shaft gear triggers fault codes (P1200/P1208) and requires a massive, labor-intensive engine-out procedure to replace the internal timing gears.
Common electronic failure inside the gearbox speed sensor cluster that suddenly forces the vehicle into limp-home mode. Requires professional programming, diagnostic coding, and clean fluid.
While the individual plastic replacement linkages are inexpensive, the extensive structural labor required to strip the entire dashboard apart drives up specialist repair invoices significantly.
Standard wear-and-tear alignment restoration for the front multi-link chassis to stop front-end knocking noises and cure premature inner-edge tire wear common under local NZ driving conditions.
