2004 — 2007

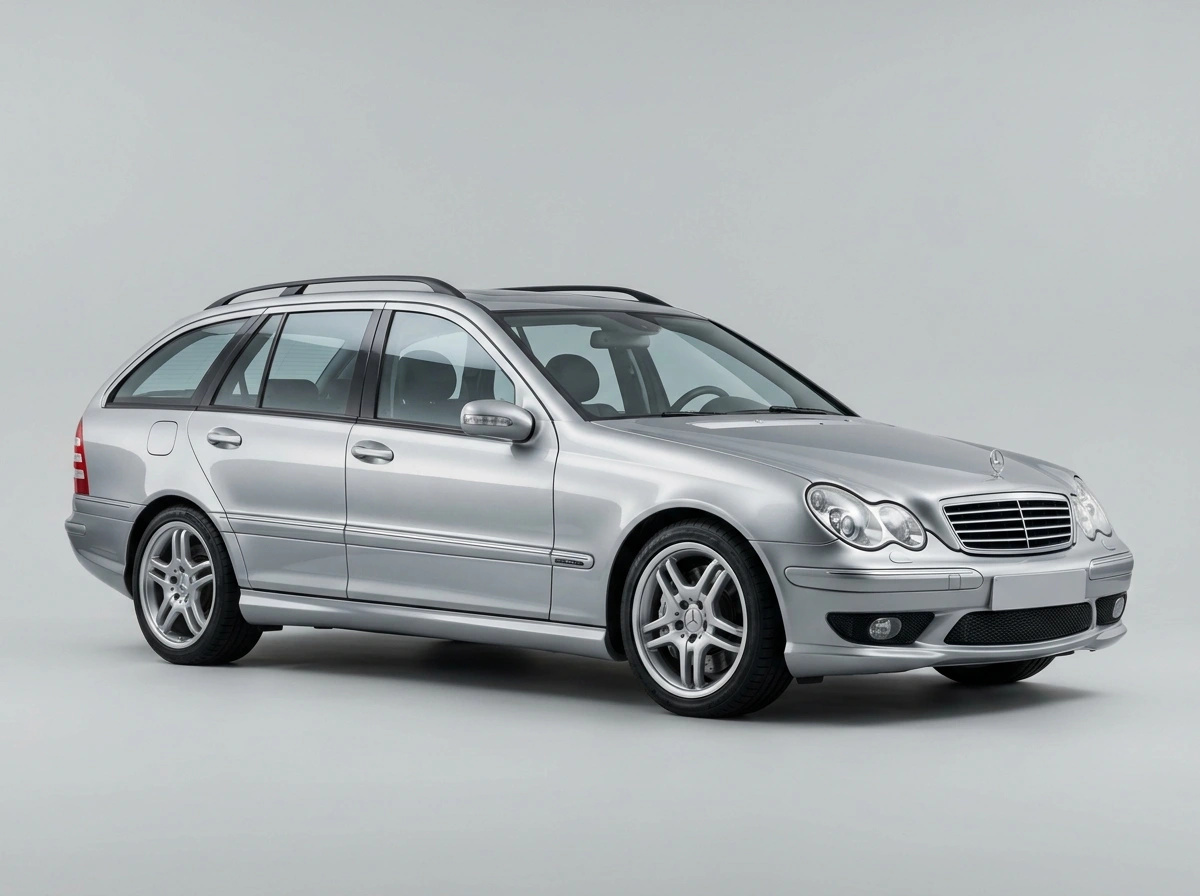

5.4L V8 (M113) - C55 AMG Performance Estate
Petrol
Inspect rear tailgate seals and rear SAM module area | Note: Open the rear side panels in the cargo bay. S203 estate models are highly prone to rear tailgate glass and antenna base seal perishing; rainwater bypasses the channels and directly shorts out the rear Signal Acquisition Module (SAM).
Evaluate 5G-Tronic shift flaring and adaptation | Note: Test drive until the V8 reaches full operating temperature. Look for transmission shift delay or 'flaring' (rpm rise between gear handovers) which reveals aged fluid or an electronic conductor plate speed sensor breakdown.
Check front axle load tracking under braking | Note: Apply firm brakes from 80km/h on a straight stretch. Due to the hybrid CLK-derived front clip and estate rear weight bias, any prominent steering shimmy or front-end knocking confirms worn lower tension struts or tracking arm bushings.
Audit rear hatch glass lock and wiper motor | Note: Operate the rear estate wiper and electronic lock latch repeatedly. Wiring loom shearing within the upper tailgate rubber boots is a common age fault that triggers erratic central locking behavior and phantom battery drain.
The mandatory twin-spark ignition system update requiring 16 high-grade iridium spark plugs, coupled with a full transmission oil pan fluid refresh and pilot bush sleeve swap.
Chassis stabilizer threshold. Inspect the rear estate coil springs for stress fractures (common under load on rough NZ secondary roads) and proactively replace collapsed hydraulic front engine mounts.
Complete cooling system and auxiliary belt drive overhaul window. Replace the water pump, mechanical belt tensioner, idler pulleys, and plastic heater core bypass valves before they fail from thermal fatigue.
Enforce premium MB 229.5 synthetic engine oil changes precisely every 10,000km or annually to mitigate internal ring wear.
Annually clear and test the panoramic/standard sunroof drainage tubes to stop water tracking down the A-pillars into front electronics blocks.
Verify the integrity of the rear prop-shaft flex guibo discs to prevent driveline harmonic vibration at high New Zealand highway speeds.
Flush the high-performance ABS braking system hydraulic fluid every 24 months to combat moisture-induced valve block sticking.
Regularly monitor the clean state of the mass air flow (MAF) sensor to maintain optimized stoichiometric fuel ratios across the V8 cylinder banks.
Estimated repair costs if issues arise
High risk electronic liability unique to the S203 wagon layout. If water corodes the rear circuit architecture, it triggers systemic lighting and central locking failures. Requires module sourcing and coding setup.
Routine major engine maintenance. Accessing all 16 plugs alongside clearing out and re-bonding the volatile M113 aluminum valve cover breather chambers demands significant labor hours from a specialist.
Chassis alignment and compliance correction. Restoring the tracking sharpness of this heavy AMG estate requires high-durability multi-link parts to confidently clear strict New Zealand Warrant of Fitness assessments.
Crucial refinement整备. The high-displacement torque profile of the 5.4L block will split the factory fluid-filled front mounts over time, dropping the engine block close to the steering rack framework.
